Sheet Material Feeder
Push-type Chip Feeder
Applicable to single-row or multi-row tape-and-reel components
Videos Product Document

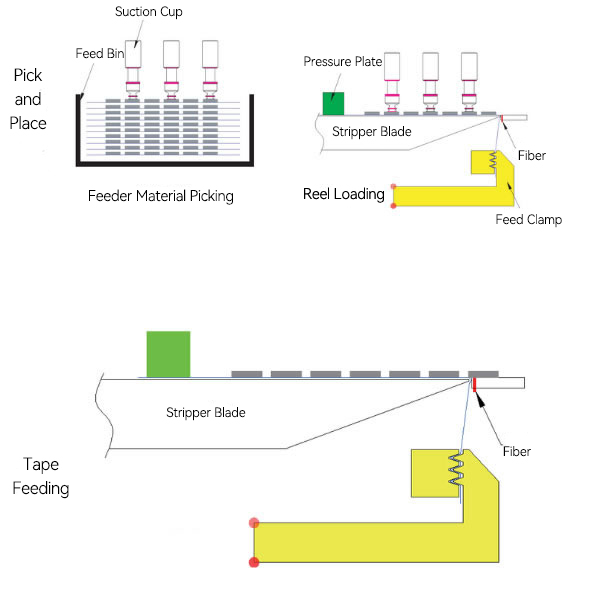

1.Picking components from the suction cup magazine of the tape feeder.
2.Picked components positioned at stripper's designated spot.
3.The pick-clamp secures the front blank, while the pressure cylinder holds the tail blank.
4.Nozzle retracts to pick position in feed bin.
5.The pulling claw advances tape for feeding.
6.Upon completion, nozzle retrieves component.
（Attention: Maintain over 25mm blank space before & after strip for clampingand pressing positions.）

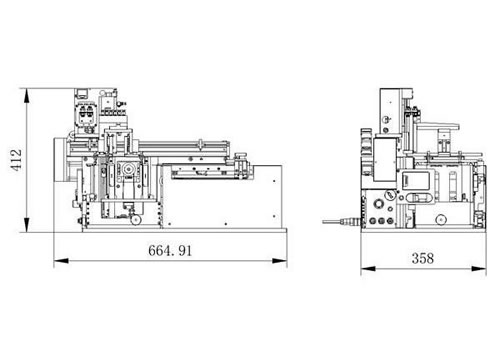

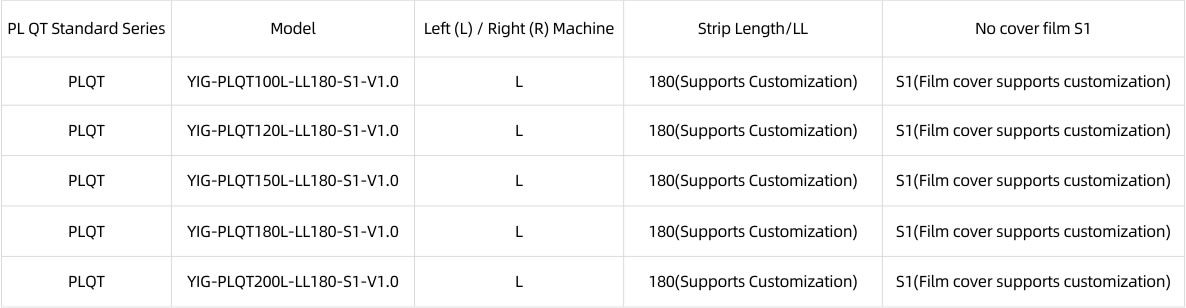

Based on equipment requirements, please refer to the following diagram for model selection.（Support non-standard customization）
Advantages: Cost-saving, especially for non-rollable materials.
Feed speed:60mm/s
Feeding Accuracy:±0.2mm(Excluding errors due to material properties)

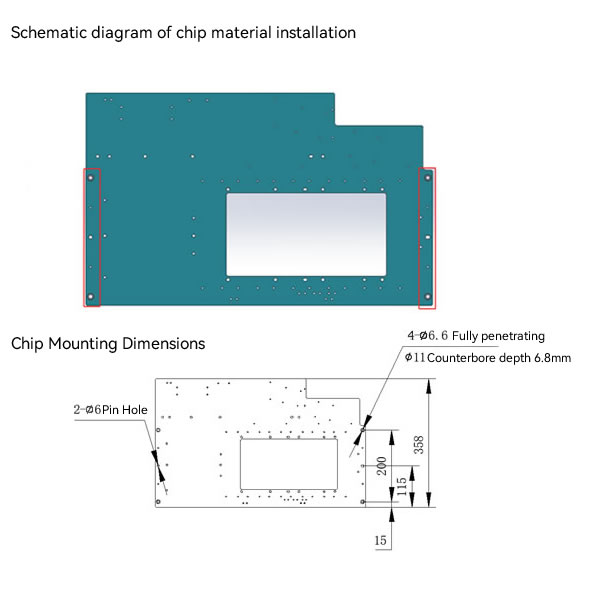

Base mounting dimensions customizable.

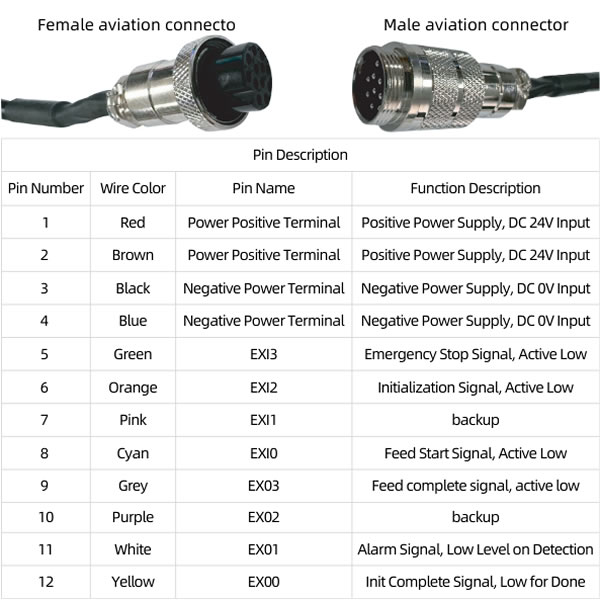

Standard Wiring Method
