Retractable Feeder
YIG-HC-S2C Long Model For Rear Withdrawal
It is suitable for rear withdrawal of the feeder and can be used to automatically peel and feed various roll materials such as paper labels, protective films, foam, double-sided adhesive tape, conductive adhesive tape, copper foil, steel sheets, and reinforced boards.

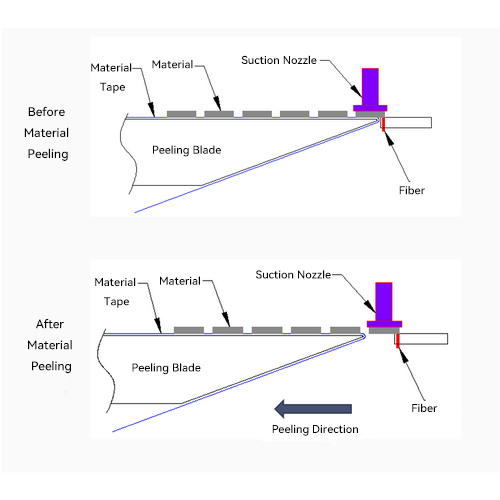

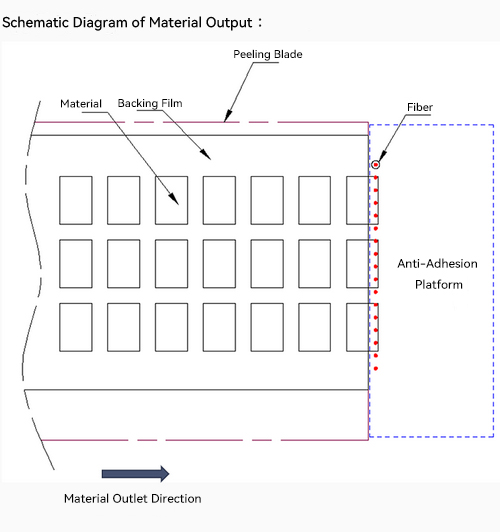

1.The feeder delivers the material, and after completion, the suction nozzle holds the material.
2.The blade retracts for peeling, and after completion, the suction nozzle is lifted.
(Note: The peeling stroke should be greater than the material width.)

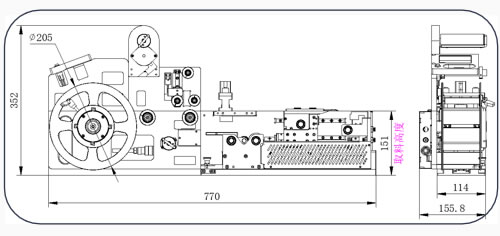

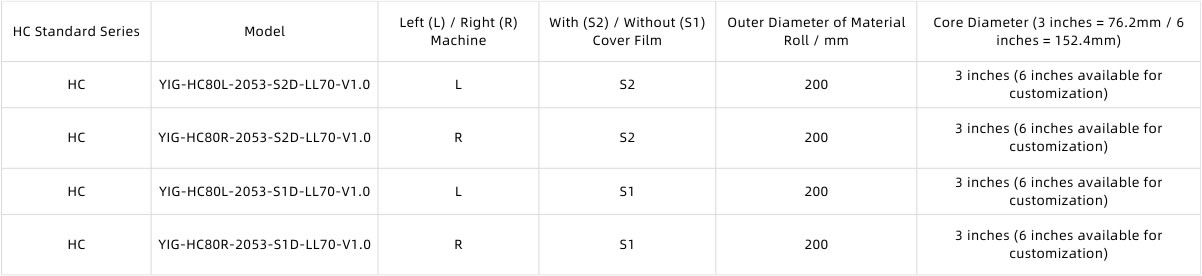

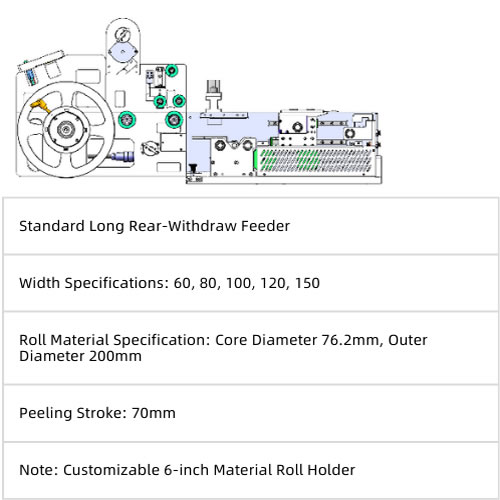

Selection Based on Equipment Requirements: Please refer to the illustration above for model selection. For instance, the HC80L (left-mounted) model is suitable for a backing film width of less than 80mm, with a material-to-backing film edge distance of at least 5mm.
Applicability: The retractable roll feeder is designed for automatic peeling and feeding of roll materials such as paper labels, protective films, foams, double-sided adhesives, conductive adhesives, copper foils, steel sheets, reinforcement plates, and other similar materials.
Advantages: High versatility and stable feeding capabilities.
Disadvantages: Materials within the same row must be picked up simultaneously.
Feeding Speed: 60mm/s
Feeding Accuracy: ±0.2mm (excluding errors caused by material characteristics)

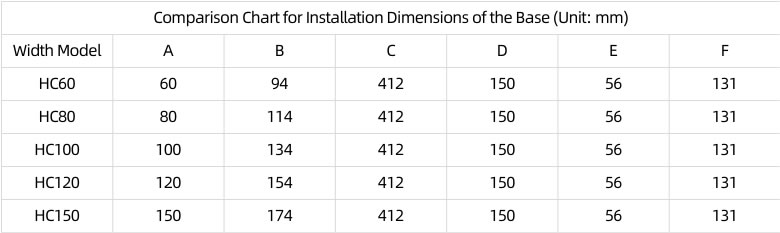

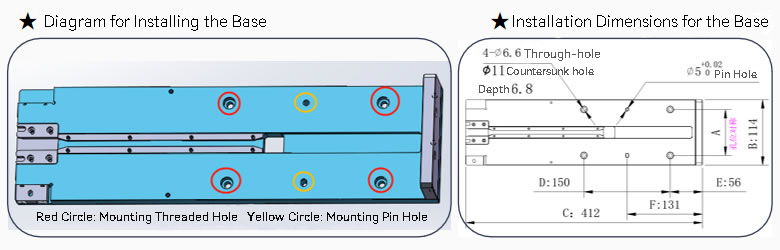

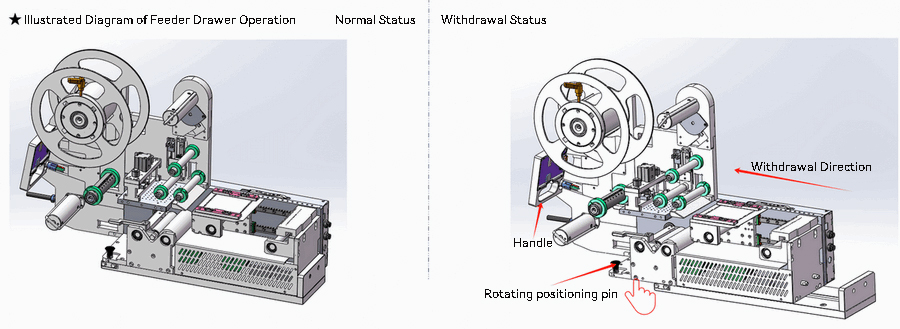

Feeder Extraction: Lift the rotary locating pin, hold the handle with your left hand, support the bottom of the feeder with your hand, and slowly pull out the feeder body in the direction indicated (as shown in the schematic diagram).
Note: Pull out slowly to prevent detachment!
Advantage: The feeder body can be quickly assembled and disassembled, providing convenience and efficiency.
